Article 3.HM50.SM

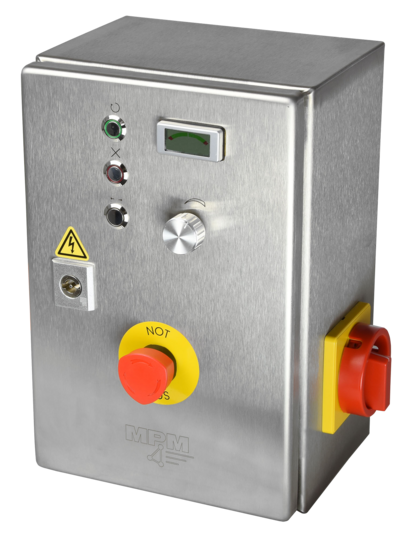

Control cabinet start module for horizontal balancing machine HM50

To control the 3.HM50 motor

3.HM50.SM (1016744A)

For controlling the 3.HM50 motor,
in conjunction with 3.HM50 and 3.BMT240M.T.S3.I/O balancing electronics

  • Stepless speed adjustment
  • Direction of rotation adjustable
  • Connection to 3.HM50

Technical details

Technical data
Operating voltage 230V / 50Hz
Power input approx. 120 W
Speed control stepless
Rotation direction Adjustable: left rotation / right rotation
Dimensions W x H x D 200 x 300 x 155mm
Weight approx. 3 kg
Standard enclosure stainless steel
Ambient operating temperature 0 °C bis +50 °C
Ambient storage temperature -10 °C bis +60 °C
Air humidity 20 % to 50 % rel. humidity

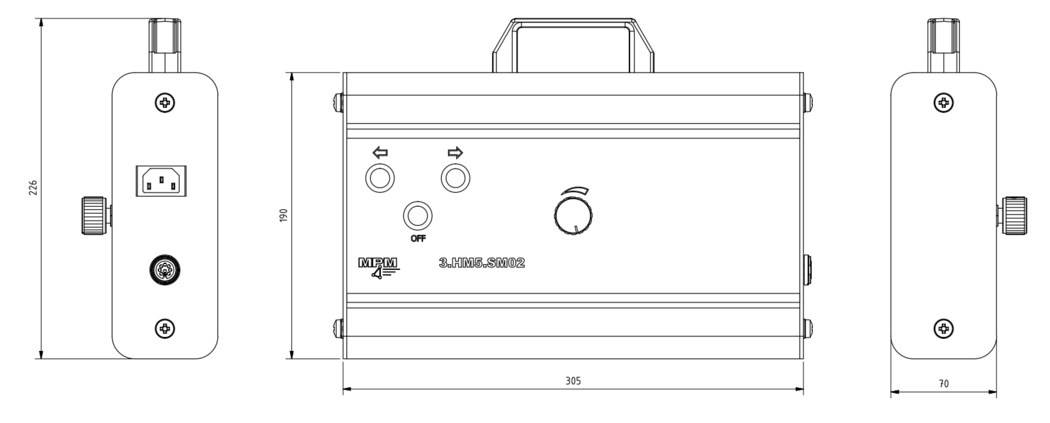

Dimensional drawings

AccessoryDescription Article
Horizontal balancing machine 3.HM50 / 3.HM50-30HF 3.HM50 / 3.HM50-30HFto product
Balancing electronic incl. balancing software BalconBMT for 3.HM50 3.BMT240M.T.2.S3.E/Ato product
CAN-USB adapter,
Connection between PC and data cable
3.CAN.USB.TSto product
Data cable, 9-pin,
Connection between balancing electronics and CAN-USB adapter
3.DKC.B09.01to product
HM50 workplace / protective enclosure 3.HM50.SE / 3.HM50.SHto product
Precision pocket scales 3.CMto product
Grub screw sets 3.0.WGSto product
Vibration sensor for 3.HM50 3.PU.M6.3.0.V2.1to product
Cable 4/3-pole for HM50 vibration sensor 3.4/301SBto product
Speed sensor optical for 3.HM50 3.DS.PZ-G101CNto product
Cable 4/3-pole for HM50 speed sensor
3.DS.PZ-G101CN
3.4/305BS.DS.M8.1to product
Articulated tripod, for mounting the speed sensor 3.0.GS01to product
Test masses for setup / calibration 3.TGto product
Balancing putty 3.0.WK02to product
