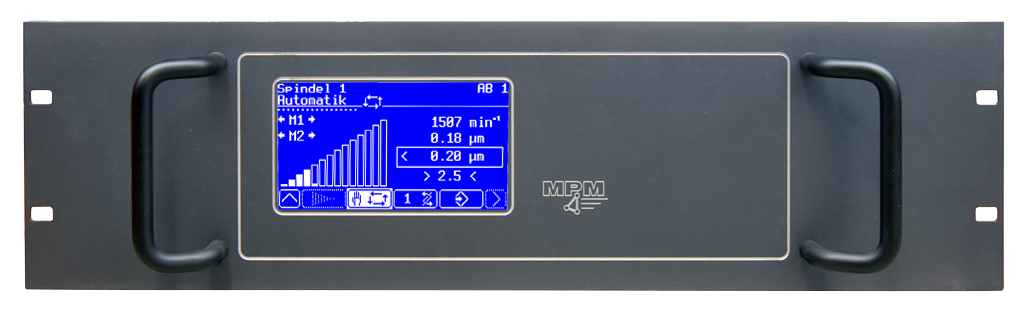

Balancing electronic, automatic AB300 (CONLESS)

For fully automatic balancing on grinding machines with MPM-mounted or spindle-mounted balancing units with CONLESS control and 19" front panel

  • CONLESS control
  • Operation via touch screen
  • Compatible with all MPM CONLESS balancers
  • CAN-Bus data output
  • Housing 19"
  • Short delivery time

Selection guide

Catalog-# / Description

Catalog-# Order-# Description
3.AB300P01.1.C 1056717A Balancing electronics AB300 with 19" front panel, 24V, without AE acoustic emission
3.AB300P01.C.KM.V1A 1015772A Balancing electronics AB300 with 19" front panel, 24V, with 1-channel AE acoustic emission, filter type A
3.AB300P01.C.KM.V2AA 1049573A Balancing electronics AB300 with 19" front panel, 24V, with 2-channel AE acoustic emission, filter type A / A

Technical details

Technical data
Operating voltage 24 V=
Power input approx. 73 VA
CONLESS transmitter connection 7-pole
Vibration sensor connection 4-pole
External output 5-pole stereo, D-SUB 9-pole socket
Operation Touchscreen
Dimensions W x H x D [mm] 482 x 134 x 252
Weight approx. 4 kg
Ambient operating temperature 0 °C bis +50 °C
Ambient storage temperature -10 °C bis +60 °C
Air humidity 20 % to 50 % rel. humidity

Dimensional drawings

Application examples

AB300 without AE-GAP/Crash/Dress



  • Automatic balancing system AB300
    with CONLESS and internal balancer ESB standard
  • Automatic balancing system AB300
    with CONLESS and internal balancer ISB form B

AB300 with AE-GAP/Crash/Dress



  • Automatic balancing system

    AB300 with external AE-GAP/Crash/dress sensor
    and
 external balancer ESB standard
  • Automatic balancing system AB300
    with external AE-GAP/Crash/Dress sensor and
    external balancer type ESB-CONLESS standard
    with integrated AE-GAP/Crash/Dess sensor
  • Automatic balancing system

    AB300 with external AE-GAP/Crash/dress sensor
    and
 internal balancer ISB type A
  • Automatic balancing system AB300
    with external AE-GAP/Crash/dress sensor and
    internal balancer ISB type A
    with integrated AE-GAP/Crash/Dress sensor
AccessoryDescription Article
Vibration sensor 3.PUto product
Cable (extension), 4-pin
for vibration sensors
Socket / Connector
3.4xxBSto product
CONLESS transmitter, 7-pin
without AE acoustic emission
3.SxxCto product
Cable (extension), 7-pin
for CONLESS transmitters
Socket / Connector
3.7xxBSto product
CONLESS receiver, 3-pole
without AE acoustic emission
3.Exxto product
Spiral cable, 3-pole
Connection between electronics and ISB type A and B
For ISB apparatus without AE acoustic emission signal
3.3.Sxx.SSto product
built-in balancer
without AE acoustic emission signal
3.ISBto product
Built-in balancers
without AE acoustic emission signal
for use in HSK receptacles.
From HSK63 to HSK125
3.ISBxxxCto product
Add-on balancers
without AE acoustic emission signal
3.ESBto product
