MPM

Article 3.S.07x.03

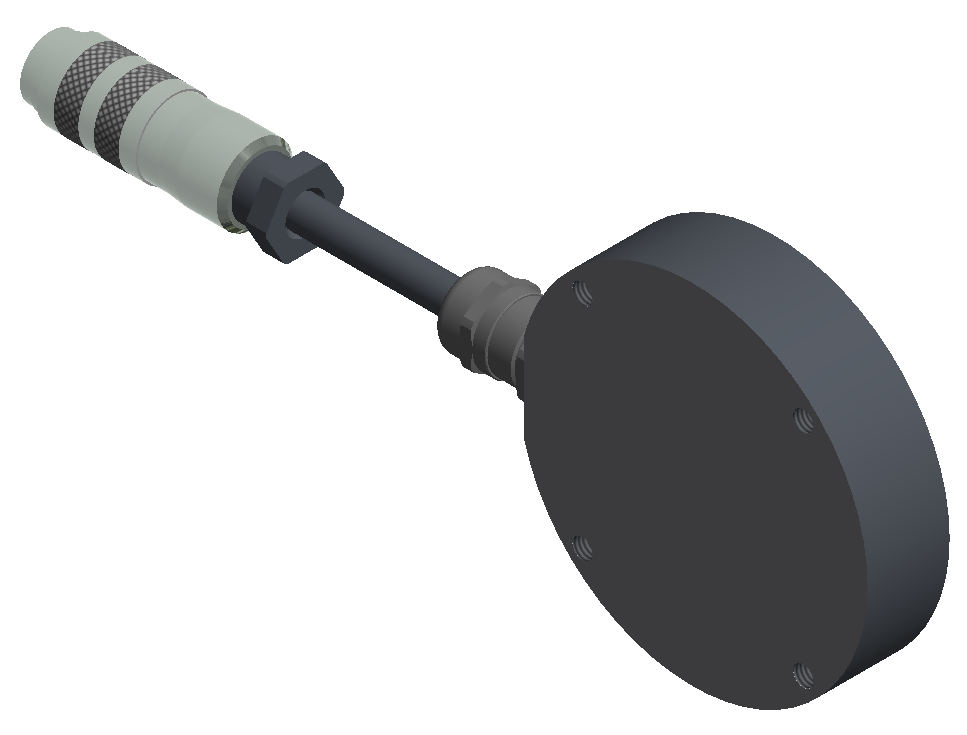

Transmitter for balancers
> Ø50mm

For controlling MPM balancers with CONLESS receivers

  • Plug 7-pin, for balancing electronics of series 3.AB3xx
  • Plug 6-pin, for balancing electronics of the series 3.AB2xx
  • Version "C" without AE acoustic emission
  • Version "G" with AE acoustic emission

Catalog-# / Description

Catalog-# Order-# Description
3.S.07.03 1017601A 6-pole, 3m, POM housing, without AE acoustic emission
3.S.07C.03 1017602A 7-pole, 3m, POM housing, without AE acoustic emission

Technical details

Technical data
Dimensions D x H Ø85x20mm
Case POM
Cable length 3m
Plug 6-pole at 3.S.07 for balancing electronics of the series 3.AB2xx
Plug 7-pole at 3.S.07C for balancing electronics of series 3.AB3xx
Application note The distance to the receiver must be approx. 5mm. The active side of the transmitter must be oriented towards the receiver.

Dimensioned drawing

Further cable lengths on request.
